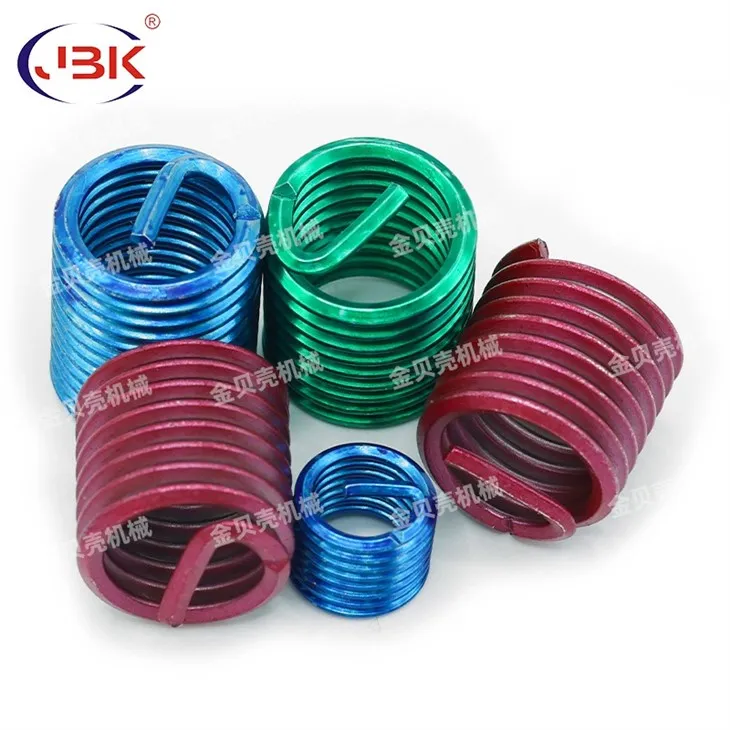

Heliky Invert o'rnatish
Mahsulot tavsifi
Aerososokosyoviy moddalar, avtoulovlar silindrli ramkalarida ilg'or mahsulotlar va sanoat matbuot freymlari bilan keskin tayyorgarlikni amalga oshirish uchun aniqlik va ishlab chiqarishni dastlabki diametrga aylantirish uchun aniq asbob-yo'riqli pilot premistik tayyorgarligi: Pilot Asperatsiyasini taqqoslash uchun aniq vositasi. Qora qotishmalar yoki kompozitlardagi mexanik birlashma yoki ichki metall sirtlarida interstititial metallurgiya bog'lanishini ta'minlash. Qo'shish bosqichi ishora - Talibrlangan Mandrel Mandrel - Niobiumni tortib olish uchun jihozlangan Torkrel - Niobiumni ko'tarib chiqdi - Niobiumni olib tashladi (32 soatgacha) dapral rotatsion kuch (10-35 mil, 10-35, O'lchov - Qisqaruvchi), uning tashqi quruvchilariga stress yorqinligini keltirib chiqarmasdan, mandrelning ekspluatal tekislash bag'rikenglik (± 0,02mm) tomonidan tashkil etilishi mumkin. Post - O'rnatish, Tang amazion Bahorda -} 50 darajadagi tebrilayotgan va 40 daraja -} bo'yicha 720 darajadan 35 daraja termikaga qarshi tura oladi oqlikning oqilona vaqtini pasaytiradigan yuqori ishonchlilik anjumanlari uchun tanqidiy ahamiyatga ega.
Parametrlar ro'yxati
|
Metrric seriyali simli qisma - metrik (metrik) qo'pol iplar |
||||||||
| Nominal diametr (d) | spiral (p) | Nominal uzunlik | Kamchiliklar soni (w) |
Tashqi diametri erkin holatda (Dz) |
Dragil diametri (qila) |
Burg'ulash chuqurligi (L3) |
Haqiqiy samarali uzunlik (L2) |
|
| ×d | ×L1 | |||||||
| 1.4 | 0.3 | 1d | 1.4 | 2.5 | 1.80-2.00 | 1.5 | 2.3 | 0.9 |
| 1.5d | 2.1 | 4.5 | 3 | 1.6 | ||||
| 2d | 2.8 | 7.0 | 3.7 | 2.3 | ||||
| 1.6 | 0.35 | 1d | 1.6 | 3.1 | 2.06-2.26 | 1.7 | 2.7 | 1.1 |
| 1.5d | 2.4 | 4.5 | 3.5 | 1.9 | ||||
| 2d | 3.2 | 6.2 | 4.3 | 2.7 | ||||
| 2.5d | 4.0 | 8.0 | 5.1 | 3.5 | ||||
| 3d | 4.8 | 10.1 | 5.9 | 4.3 | ||||
| 2 | 0.4 | 1d | 2.0 | 3.2 | 2.53-2.70 | 2.1 | 3.6 | 1.6 |
| 1.5d | 3.0 | 5.3 | 4.6 | 2.6 | ||||
| 2d | 4.0 | 7.4 | 5.6 | 3.6 | ||||
| 2.5d | 5.0 | 9.5 | 6.6 | 4.6 | ||||
| 3d | 6.0 | 11.6 | 7.6 | 5.6 | ||||
| 2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.20-3.70 | 2.6 | 4.3 | 2.1 |
| 1.5d | 3.75 | 5.9 | 5.6 | 3.3 | ||||
| 2d | 5.0 | 8.2 | 6.8 | 4.6 | ||||
| 2.5d | 6.25 | 10.5 | 8.1 | 5.8 | ||||
| 3d | 7.5 | 12.8 | 9.3 | 7.0 | ||||
| 3 | 0.5 | 1d | 3.0 | 4.2 | 3.80-4.35 | 3.1 | 5.0 | 2.5 |
| 1.5d | 4.5 | 6.8 | 6.5 | 4.0 | ||||
| 2d | 6.0 | 9.4 | 8.0 | 5.5 | ||||
| 2.5d | 7.5 | 12 | 9.5 | 7 | ||||
| 3d | 9.0 | 14.6 | 11.0 | 8.5 | ||||
| 4 | 0.7 | 1d | 4.0 | 4 | 5.05-5.60 | 4.2 | 6.8 | 3.3 |
| 1.5d | 6.0 | 6.6 | 8.8 | 5.3 | ||||
| 2d | 8.0 | 9.1 | 10.8 | 7.3 | ||||
| 2.5d | 10.0 | 11.7 | 12.8 | 9.3 | ||||
| 3d | 12.0 | 14.2 | 14.8 | 11.3 | ||||
| 5 | 0.8 | 1d | 5.0 | 4.4 | 6.25-6.80 | 5.2 | 8.2 | 4.2 |
| 1.5d | 7.5 | 7.1 | 10.7 | 6.7 | ||||
| 2d | 10.0 | 9.9 | 13.2 | 9.2 | ||||
| 2.5d | 12.5 | 12.6 | 15.7 | 11.7 | ||||
| 3d | 15.0 | 15.3 | 18.2 | 14.2 | ||||
| 6 | 1 | 1d | 6.0 | 4.3 | 7.58-7.95 | 6.2 | 10.0 | 5.0 |
| 1.5d | 9.0 | 6.9 | 13.0 | 8.0 | ||||
| 2d | 12.0 | 9.6 | 16.0 | 11.0 | ||||
| 2.5d | 15.0 | 12.2 | 19.0 | 14.0 | ||||
| 3d | 18.0 | 14.9 | 22.0 | 17.0 | ||||
| 7 | 1 | 1d | 7.0 | 5.2 | 8.58-9.20 | 7.2 | 11.0 | 6.0 |
| 1.5d | 10.5 | 8.3 | 14.5 | 9.5 | ||||
| 2d | 14.0 | 11.5 | 18.0 | 13.0 | ||||
| 2.5d | 17.5 | 14.6 | 21.5 | 16.5 | ||||
| 3d | 21.0 | 17.4 | 25.5 | 20.5 | ||||
| 8 | 1.25 | 1d | 8.0 | 4.8 | 9.85-10.35 | 8.3 | 13.0 | 6.8 |
| 1.5d | 12.0 | 7.4 | 17.0 | 10.8 | ||||
| 2d | 16.0 | 10.6 | 21.0 | 14.8 | ||||
| 2.5d | 20.0 | 13.5 | 25.0 | 18.8 | ||||
| 3d | 24.0 | 16.5 | 29.0 | 22.8 | ||||
| 9 | 1.25 | 1d | 9.0 | 5.5 | 10.85-11.1 | 9.3 | 14.0 | 7.75 |
| 1.5d | 13.5 | 8.9 | 18.5 | 12.25 | ||||
| 2d | 18.0 | 12.2 | 23.0 | 16.75 | ||||
| 2.5d | 22.5 | 15.5 | 27.5 | 21.25 | ||||
| 3d | 27.0 | 18.8 | 32.0 | 25.75 | ||||
| 10 | 1.5 | 1d | 10.0 | 5.0 | 12.10-12.80 | 10.3 | 16.0 | 8.5 |
| 1.5d | 15.0 | 8.1 | 21.0 | 13.5 | ||||
| 2d | 20.0 | 11.2 | 26.0 | 18.5 | ||||
| 2.5d | 25.0 | 14.2 | 31.0 | 23.5 | ||||
| 3d | 30.0 | 17.3 | 36.0 | 28.5 | ||||
| 11 | 1.5 | 1d | 11.0 | 5.7 | 13.10-13.50 | 11.3 | 17.0 | 9.5 |
| 1.5d | 16.5 | 9.1 | 22.5 | 15.0 | ||||
| 2d | 22.0 | 12.5 | 28.0 | 20.5 | ||||
| 2.5d | 27.5 | 15.9 | 33.5 | 26.0 | ||||
| 3d | 33.0 | 19.1 | 39.0 | 31.5 | ||||
| 12 | 1.75 | 1d | 12.0 | 5.3 | 14.50-15.00 | 12.4 | 19.0 | 10.3 |
| 1.5d | 18.0 | 8.4 | 25.0 | 16.3 | ||||
| 2d | 24.0 | 11.6 | 31.0 | 22.3 | ||||
| 2.5d | 30.0 | 14.8 | 39.0 | 30.3 | ||||
| 3d | 36.0 | 18.0 | 43.0 | 34.3 | ||||
| 14 | 2 | 1d | 14.0 | 5.4 | 16.87-17.87 | 14.5 | 22.0 | 12.0 |
| 1.5d | 21.0 | 8.7 | 29.0 | 19.0 | ||||
| 2d | 28.0 | 11.9 | 36.0 | 26.0 | ||||
| 2.5d | 35.0 | 15.2 | 43.0 | 33.0 | ||||
| 3d | 42.0 | 18.4 | 50.0 | 40.0 | ||||
| 16 | 2 | 1d | 16.0 | 6.3 | 18.87-19.90 | 16.5 | 24.0 | 14.0 |
| 1.5d | 24.0 | 10.0 | 32.0 | 22.0 | ||||
| 2d | 32.0 | 13.7 | 40.0 | 30.0 | ||||
| 2.5d | 40.0 | 17.5 | 48.0 | 38.0 | ||||
| 3d | 48.0 | 21.2 | 56.0 | 46.0 | ||||
| 18 | 2.5 | 1d | 18.0 | 5.6 | 21.40-22.00 | 18.6 | 28.0 | 15.5 |
| 1.5d | 27.0 | 9.0 | 37.0 | 24.5 | ||||
| 2d | 36.0 | 12.3 | 46.0 | 33.5 | ||||
| 2.5d | 45.0 | 15.7 | 55.0 | 42.5 | ||||
| 3d | 54.0 | 19.0 | 64.0 | 51.5 | ||||
| 20 | 2.5 | 1d | 20.0 | 6.3 | 23.46-24.40 | 20.6 | 30.0 | 17.5 |
| 1.5d | 30.0 | 10.0 | 40.0 | 27.5 | ||||
| 2d | 40.0 | 13.8 | 50.0 | 37.5 | ||||
| 2.5d | 50.0 | 17.5 | 60.0 | 47.5 | ||||
| 3d | 60.0 | 21.2 | 70.0 | 57.5 | ||||
| 22 | 2.5 | 1d | 22.0 | 6.9 | 25.61-26.90 | 22.6 | 32.0 | 19.5 |
| 1.5d | 33.0 | 11.0 | 43.0 | 30.5 | ||||
| 2d | 44.0 | 15.0 | 54.0 | 41.5 | ||||
| 2.5d | 55.0 | 19.0 | 65.0 | 52.5 | ||||
| 3d | 66.0 | 23.0 | 76.0 | 63.5 | ||||
| 24 | 3 | 1d | 24.0 | 6.3 | 28.15-29.10 | 24.7 | 36.0 | 21.0 |
| 1.5d | 36.0 | 10.0 | 48.0 | 33.0 | ||||
| 2d | 48.0 | 13.7 | 60.0 | 45.0 | ||||
| 2.5d | 60.0 | 17.5 | 72.0 | 57.0 | ||||
| 3d | 72.0 | 21.2 | 84.0 | 69.0 | ||||
| 27 | 3 | 0.75d | 20.25 | 5.0 | 31.15-32.40 | 27.8 | 32.5 | 17.5 |
| 1d | 27.0 | 7.2 | 39.0 | 24.0 | ||||
| 1.5d | 40.5 | 11.4 | 52.5 | 37.5 | ||||
| 2d | 54.0 | 15.4 | 66.0 | 51.0 | ||||
| 2.5d | 67.5 | 19.5 | 79.5 | 64.5 | ||||
| 30 | 3.5 | 1d | 30.0 | 6.9 | 34.70-35.81 | 30.9 | 44.0 | 26.5 |
| 1.5d | 45.0 | 11.0 | 59.0 | 41.5 | ||||
| 2d | 60.0 | 15.0 | 74.0 | 56.5 | ||||
| 2.5d | 75.0 | 19.0 | 89.0 | 71.5 | ||||
| 3d | 90.0 | 23.0 | 104.5 | 86.5 | ||||
| 33 | 3.5 | 0.75d | 24.8 | 5.6 | 37.70-39.01 | 33.9 | 38.8 | 21.3 |
| 1d | 33.0 | 7.8 | 47.0 | 29.5 | ||||
| 1.5d | 49.5 | 12.2 | 63.5 | 46.0 | ||||
| 2d | 66.0 | 16.5 | 80.0 | 62.5 | ||||
| 36 | 4 | 0.75d | 27.0 | 5.1 | 41.33-42.67 | 37.0 | 43.0 | 23.0 |
| 1d | 36.0 | 7.0 | 52.0 | 32.0 | ||||
| 1.5d | 54.0 | 11.1 | 70.0 | 50.0 | ||||
| 2d | 72.0 | 15.2 | 88.0 | 68.0 | ||||
Mahsulotlarni qo'llash
Po'lat sim qisegining qo'llanilishi
1. Sanoat texnikalari sohasi: har xil og'ir - - burchilik vositalari, CNC dastgohlari, qutilar, plantlar, transymali valentlar uchun. U tishli teshiklarning keskinligi va qirqishning keskin kuchini kuchaytirishi mumkin, ip sirpanishi yoki uzunligi sababli, temir va quyma po'lat kabi mo'rt metall substratlar uchun ipni kuchaytirishga imkon beradi.
2. Avtomobil ishlab chiqarish va texnik xizmat ko'rsatish maydoni: Dvigatel silindrli boshlari, chassisni tebranish qavslari va turli xil qismlarni almashtirishning oldini olish va texnik xizmat ko'rsatish xarajatlarini kamaytirishdan saqlanishi mumkin.
3 Yuqori - balandligi kabi ish sharoitlari past harorat va yuqori bosim.
4 U ingichka - plastik va engil qotishmalar kabi aniq iplarni yaratishi mumkin, masalan, ipilgan teshiklarni notekis kuchlar tufayli yorilish va jihozlarning tarkibiy ulanishini ta'minlaydi.
5. Tibbiyot vositalari sohasi: jarrohlik vositalarida (masalan, ortopedik jarrohlik vositalarida), masalan, oqish kuchi va hokazolar, shuningdek, tibbiy asboblar kuchini kuchaytirishi, balki tibbiy sterilizatsiya va korroziya qarshiligi talablariga javob beradigan metall ionlarini etkazib berishdan qochadi.
6. Eski uskunalar ipi ta'mirlash sohasi: eskirgan, sirpanish moslamalari, mashinalarning o'rash va boshqalar uchun, masalan, suv nasoslari, katta matolar va boshqalar. Po'lat sim qisqichlarini o'rnatish orqali tiklangan funktsiya tiklanishi, uskunalarning xizmatini kengaytirish va jihozlarni almashtirishning iqtisodiy narxini pasaytirishni kamaytirish.
Asosiy ma'lumotlar
| Model raqami | M1.2-100 |
| Aylantirish yo'nalishi | Chap / o'ng |
| Sertifikatlash | ISO, ROHS |
| Aniq baho | 6h |
| O'rnatish dastagi | Bor |
| Transport to'plami | Pe sumkalar + karton + paltolar |
| Savdo belgisi | Jbk |
| HS kodi | 7318190000 |
| Foydalanish | Qurilish, mashinalar, tibbiy, raketa, etkazib berish, kimyoviy |
| Moslashtirilgan | Moslashtirilgan |
| Uzunligi | Odatlangan |
| Haroratni bag'rikenglik | 932fahahend - 1382fahahaleyt |
| Spetsifikatsiya | Paket 30 sm x6 sm x 18cm |
| Kelib chiqishi | Xitoy |
| Ishlab chiqarish quvvati | Kuniga 3000000 dona |
TSS
Savol: To'lov muddati nima?
Javob: T / T & L / C - afzal to'lov shartlari. Shuningdek, "Express" to'lovi kabi, eng past qiymat to'lovlari uchun eng past qiymat to'lovlari uchun G'arbiy {{}} Wester.
Savol: Yetkazib berish muddati qancha davom etadi?
Javob: Bizda katta aktsiyalar, 3 kun aktsiyalar, 7-15 kun.
Savol: Siz namunalarni taqdim qilasizmi? Bu bepul yoki qo'shimcha to'lovlar kerakmi?
Javob: Ha, biz do'kondagi narsalar uchun bepul namunalarni taklif qilishimiz mumkin, shunchaki etkazib berish narxini to'lash kerak.
Savol: To'lov shartlari qanday?
A: 50% oldindan, etkazib berishdan oldin 50%, agar 150 AQSh dollaridan kam bo'lsa.
Savol: Sizning narx shartlaringiz qanday?
Javob: Exw / Fob / CFR / FCA / CPT / CIP / DDP
Savol: Sizning mahsulotingiz qanday?
Javob: Bizning mahsulotlar qatorini kiritish, egilmaydigan qo'shimchalar, ipni ta'mirlash to'plamini o'z ichiga oladi, Tutqichlar, o'z-o'zidan asboblar, o'z-o'zidan bog'lash
